Description

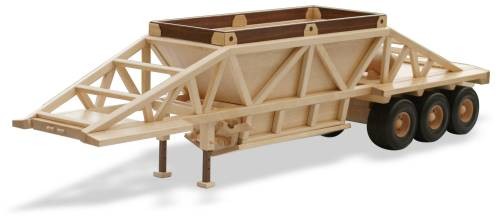

The Belly Dump Trailer Plan
The Belly Dump Trailer plan from Toys and Joys is a complete, foldout blueprint with exact measurements and templates to build the woodworking plan from Bear Woods Supply. **Recommended Parts Below!**
- Finished model is approximately 32" long
- Precision drafted full sized plans by Toys and Joys
- Complete, At-A-Glance materials list
- Easy to follow instructions
- Beautifully precise patterns enable you to create and display quality replicas of your favorite cars, trucks, equipment etc.
- Look below for wholesale parts that can be supplied by Bear Woods. All parts not listed can be bought at your local hardware store.
- You might also like our TJ-105 Articulated Dump Truck, our TJ-67 Front-End Loader or any other Bear Woods Woodworking plans from Toys and Joys.
Recommended Parts with this Pattern:
- TR-275 = Wheels (12 Needed)
- BD-332-12 = Dowels 3/32"x 12" (1 Needed)
- BD-025-12 = Dowels 1/4" x 12" (1 Needed)
- AP-244 = Axel Pegs (6 Needed)
- AP-090 = Axel Pegs (12 Needed)
- BD-018-12 = Dowels 3/16" x 12" (1 Needed)
- BD-0125-12 = Dowels 1/3" x 12" (1 Needed)
- BD-037-12 = Dowels 3/8" x 12" (1 Needed)
- Recommended parts do not include all parts necessary to create the model, these are accessory items like wheels, pegs, dowels, buttons etc.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Tips
Each Toys and Joys Pattern is a full sized blueprint style pattern, complete with scale drawings and measurements of each part. You can also reference the tab "Recommended Parts" for some popular items required by the pattern that you can buy (or make).
Here's some tools we suggest that will help you to work with most of the Toys and Joys patterns.
Band Saw or other saw to cut the body pieces.
Drill Press
Power Sander: Disc Sander / Belt Sander Combination)
Table Saw
Router
Spindle Sander (Not required but can be useful)
Small clamps (Rubber Bands can be used in some cases)
Scroll Saw (Nice to have, but not required)
Lathe (Only required for a 3 models) (Locomotives, & Ready Mix Truck)
Some hand tools can be useful.
Plus of course some Glue - we recommend our Titebond Glue
