Description
Replacement Clock Mechanism and Hands for a 6" Diameter Clock
Trying to make, fix or replace your 6" Diameter Clock?
We offer kits suitable for both 5/8" thick and 3/8" thick clock bases.

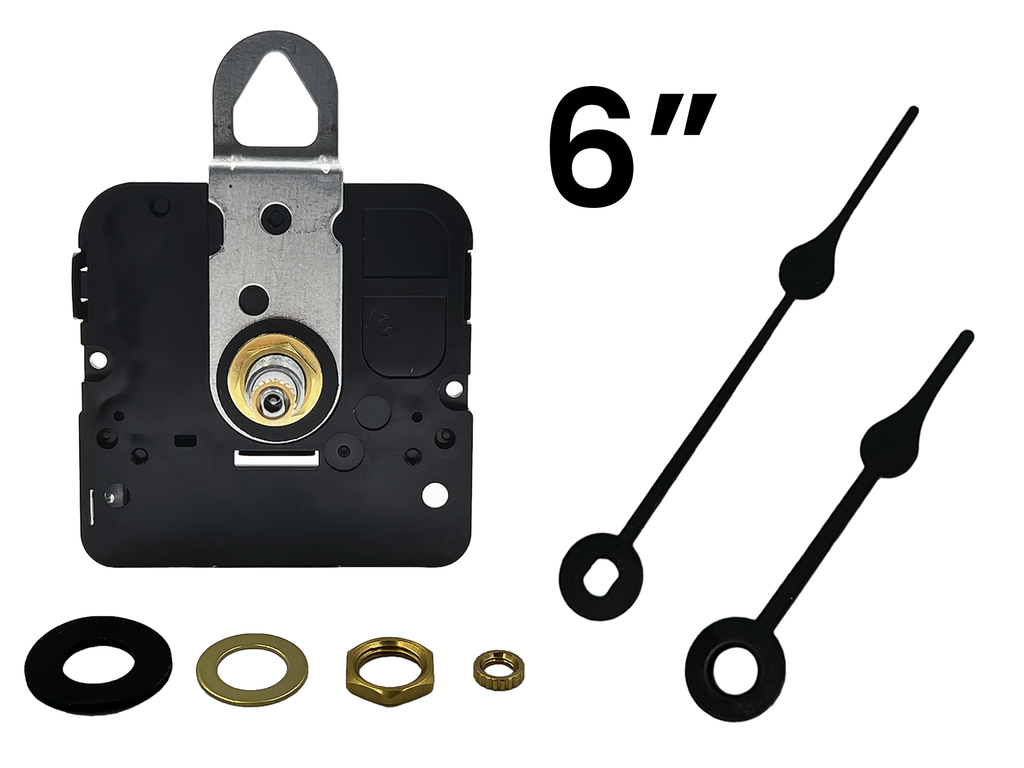

What is included with my clock kit purchase?
Standard Quartz Clock Mechanism, USA-Made by Takane
- Accurate within 2 minutes to a year
- Outdoor use okay if kept dry
- Runs on 1 (AA) sized battery
- Comes complete with hardware
- Dimensions: 2-1/8 in x 2-1/8 in x 5/8 in
- Threaded Shaft Diameter: 5/16 in
Black Spade Clock Hands, 2-1/2 in Length
- Fits up to 6 in dial diameter
- Includes hour and minute hand
- Do NOT use too much pressure when installing
Mechanism Hanger & Rubber Washer
- Works with any standard quartz (mini) movement
- Reliably hang your clock mechanism with ease

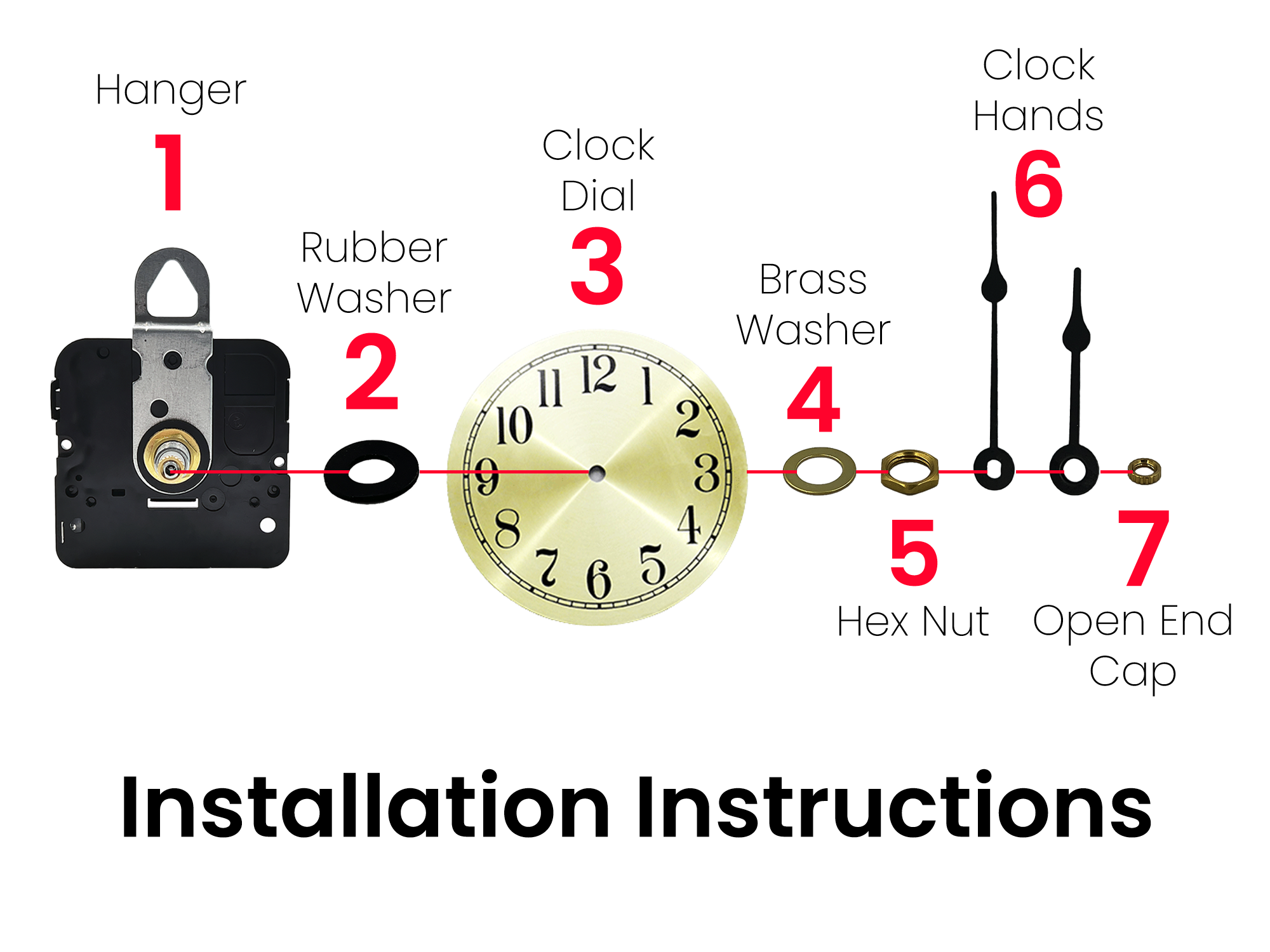

How to Assemble

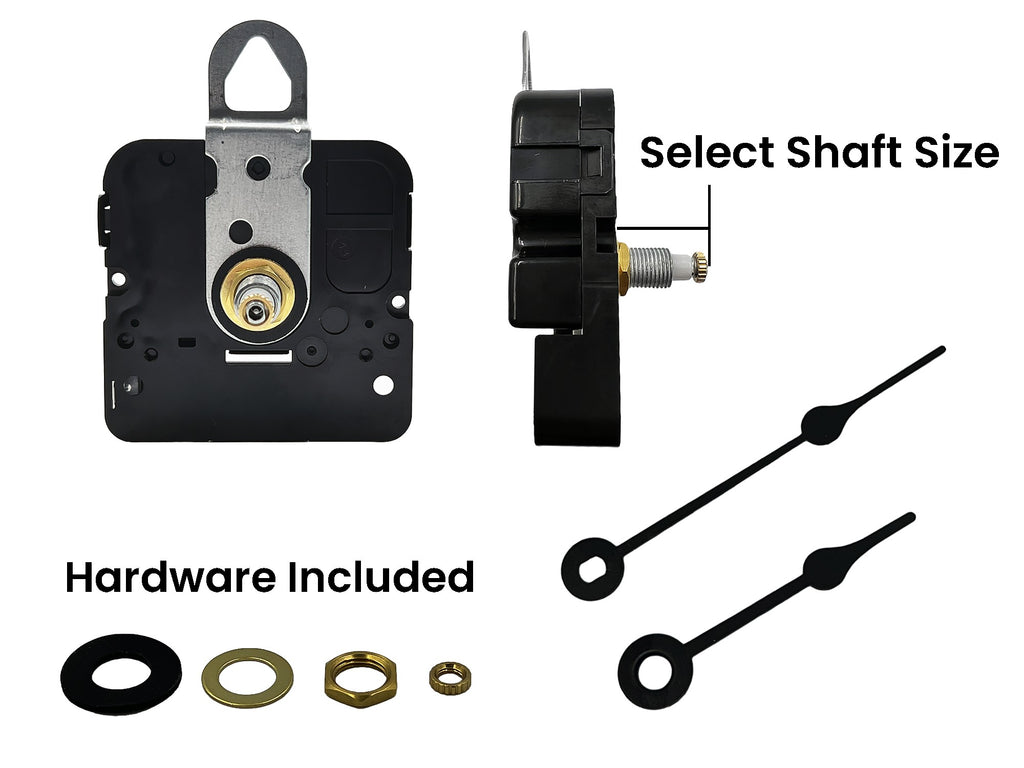

Please refer to the Image #3 above to guide your clock mechanism installation/replacement.
If you need more help, please check out this link for more information.
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Install a FRESH Duracell or Energizer Battery (But not a rechargeable type). In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.
