USA Made Compact Pendulum Quartz Clock Movement (up to 3/4" thick dial face)

Name: USA Made Compact Pendulum Quartz Clock Movement (up to 3/4" thick dial face)
Brand: Bear Woods Supply
SKU: Q-37
Price: 21.95 USD
Availability: InStock

SKU: Q-37

usa made compact pendulum quartz clock movement

Price:

$21.95 USD

Quantity:

Choose your free clock hands:

Customers viewed in last 24 hours

Compact Pendulum Quartz Clock Movements (up to 3/4" thick dial face)

These Pendulum Clock Mechanisms are ideal for compact clock cases. These clock motors run a step second hand on a single 'AA' battery and come with a 1 year warranty and is USA Made. Fantastic replacement clockworks, or easy to use to make new clocks.

Mini Pendulum Mechanism Features:

Mini Pendulum Movement Size 2-1/8 inches wide x 3-5/8 inches high x 7/8 inches deep.
1 year Warranty
USA Made
Step Second Hand (optional)
Powered by AA Battery (Not Included)
Mounting hardware (washer, hex nut, open end nut) included. Hanger sold separately.

Compact Pendulum Clock Mechanism Shopping Tips:

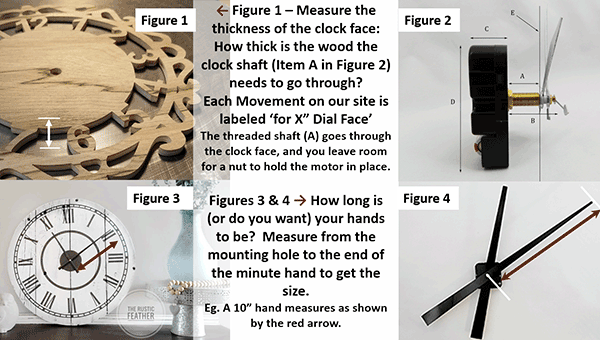

1) Choose your movement based on the thickness of the clock face/dial you are using or making. Learn how to choose the right size clock hands and clock motors.

2) Mix and Match Sizes of Pendulum Clock Movements to get a better price.

3) If you forget to add hands or the pendulum rod/bob and you'd still like the hands or rod and bob a separate shipping fee will apply. We always recommend new hands, as older hands may not fit the American I Shaft design.

Shop here for your Pendulums and Hands to Go With This Pendulum Quartz Clock Motor Mounting hardware (washer, hex nut, open end nut) included. Hanger sold separately.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Happy

The shipping time was good and the part was just what I needed. It worked out nice and is running perfect.

Terrific customer service

I was significantly impressed with my recent customer service experience with Bear Woods. Thru their commitment and patience they were able to resolve a problem I was having with a clock mechanism and wall hanger attachment. In addition they provided the required additional parts at no charge. Problem was resolved quickly and correctly! Thanks

It worked as expected

It worked

Great Servica

I am happy with your service but one of the pendulum units did not work from the start. Shelby said you would replace it but I have not heard when it is going to be shipped. The other two units are working fine. Thanks, Tim

perfect fit

Terrific

1 2 3

**When repairing a clock we always recommend new hands as your old ones may not fit.

Dimensions:2-1/8 inches wide x 3-5/8 inches high x 7/8 inches deep/li>

Overall Shaft Length:1-1/4"

Threaded Shaft Diameter:5/16"

Threaded Shaft Length: 7/8"

Runs on 1 AA battery

Runs hands up to 4-7/8" inches long

Works with Material up to 3/4" thick

The maximum capacity for pendulums on this movement is 100 grams (3-1/2 ounces).

Pendulums swing without battery power - using momentum and magnet. Keep your clock level and perpendicular to the ground for continuous pendulum motion. For a battered powered pendulum consider our Heavy Duty Pendulum Drive QB-DRV

Hardware Included

Brass Washer

Hex Nut

Open End Nut

Hanger Sold Separately

Optional Hardware

Add an Black Endcap for $0.50	Quantity
or Add an Endcap for $0.50	Quantity

Install a FRESH Duracell or Energizer Battery (But not a rechargeable type). In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.
