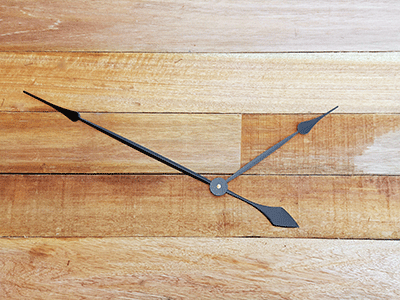

14" Premium Black Spade Clock Hands

Name: 14" Premium Black Spade Clock Hands
Brand: Bear Woods Supply
SKU: QH-86
Price: 27.21 CAD
Availability: InStock

SKU: QH-86

Clock hands for building or repairing large clocks free with mechanism purchase

Price:

$27.21 CAD

Quantity:

Customers viewed in last 24 hours

14" Premium High Torque Hands - Black Spade Style

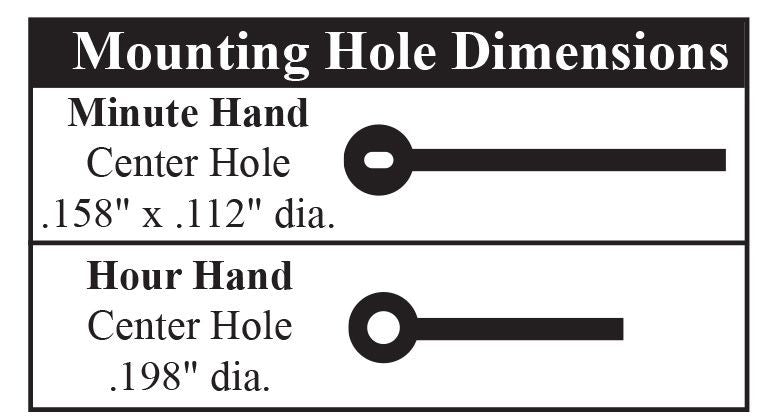

The measurement is from the hole where the hands mount onto the high torque shaft to the tip. Hour hands are proportionate.

Tips for making larger wall clocks:

1. Second hands not included - we don't recommend second hands with high torque movements as they draw too much power.

2. Still want a second hand? - choose our balanced 10 inch red or black second hands that work with our Continuous Sweep (Silent) High Torque Motors.

3. Scroll down to select your movement to go with these hands. Or click here.

4. These hands can be trimmed to a shorter length if you keep the hand balanced. (just put the mounting hole of the minute hand on your fingertip to check the balance) They can be spray painted another color.

Not sure what parts would work best for your project? Click here to learn how to select the right movement and hands.

If you are going to trim the hand to fit a particular size clock dial, the minute hand must remain balanced. Normally people just glue the material removed right under where it was cut from. You can check the balance of any minute hand just by placing the mounting hole on your fingertip. If it lays there flat then it’s balanced, but if it falls off your fingertip, it’s not properly balanced.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Perfect size

Hands are a little flimsy but I'm sure they need to be light weight in order for the motor to drive them. Other then that I'm happy with them

Fit perfectly

Used these hands to rework our howard miller 30" wall clock. Perfect fit

Design

The extended end of the minute hand appears too big/wide as compared to the hour hand.

How do I choose the right size clock motor & hands?

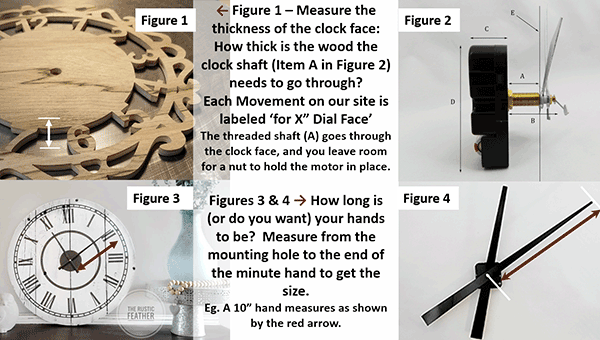

1) Refer to the figure here, or Click Here for helpful info (a new window or tab will open)

2) The size of hands is based on the length of the minute hand from the mounting hole to the end of the minute hand. (Figures 3 & 4)

3) Our clock motors are sized by the thickness of the dial the movements can go through. EG. High torque Q-64 will go through up to 5/8" thick material, while standard/mini motor Q-65 will go through 3/8" thick clock faces. (Figure 1 and item "A" in Figure 2)

Tip 1) If your material is too thick, consider removing some to in-set the clock. Or if your clock face material is too thin, consider adding some material behind the face so the hands will sit closer to your clock face.

Tip 2) Most hands can be slightly trimmed if need be.

Tip 3) Our customers also spray paint them.
