Continuous Sweep Mini Quartz Clock Movements (up to 1/4" dial face) with Free Hands

Be the first one to write a review
Quantity   1 - 9     10 - 49     50+
Price $18.95 $13.20 $12.95
Per Silent Clock Mechanism. Choose FREE or Premium Clock Hands.
US NO TAX, Part #: Q-17-CS
Quantity:

Checkout/Estimate Shipping

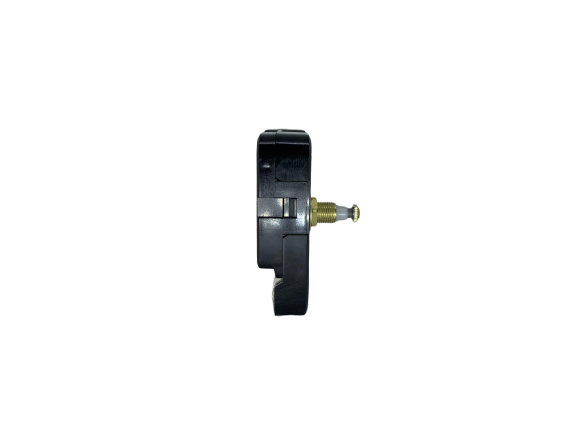

Continuous Sweep Clock Movements (With Silent Motor) for 1/4 inch thick dial face

  • Accurate Within 2 Minutes A Year
  • 1 Year Warranty
  • OK for outdoor use if sheltered from rain.

Click just above on "Choose your hands" to choose your hands for this type of movement. There are about 25 free hand options available and many more for purchase.

Please note free hands are only available per each movement purchased and if not selected at time of purchase, there will be an extra shipping charge. Also note that hangers and the rubber washer are sold separately - find them at the same spot as where you choose your hands.

Need hands longer than 5 inches? Click here for high torque options

Not compatible with movement covers (Q-COV)

Specifications

**When repairing a clock we always recommend new hands as your old ones may not fit.


  • Dimensions: 2-1/8 inch x 2-1/8 inch x 5/8 inch thick
  • Overall Shaft Length: 5/8"
  • Threaded Shaft Length: 5/16"
  • American I Shaft Diameter: 5/16 inch
  • Runs on 1 (AA) Size Battery
  • Runs up to 4.5" Clock Hands
  • Fits 3 inch Diameter Hole or Flush Mount
  • Works with material up to 1/2" thick

  • Hardware Included

  • Brass Washer
  • Hex Nut
  • Open End Nut
  • Hanger sold separately



  • Optional Hardware

    Add an Black Endcap for $0.50
    or Add an Endcap for $0.50

    Tips

    Install a FRESH Duracell or Energizer Battery (But not a rechargeable type).  In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.

    Choose hands - the options here will fit your clock motor. We recommend our new, balanced hands.

    Click the tab "Choose Hands" to see hands that go with this clock motor.

    Optional Accessories

    Closed End Caps - This movement ships with an open end nut so you can also attach a second hand.  For a different look, choose a closed end cap - we have options in black and brass color.

    brass end caps for clock motors quartz

    Brass End Cap



    black end cap for quartz clock motors

    Black End Cap

    Hanger - Choose a hanger that slides over the clock motor if needed for your clock design.

    hanger for quartz clock movements

    Clock Motor Hanger



    We also sell regular picture hanging hardware at great discount prices!  Shop here for versatile ways to hang your clocks and pictures.
