Clock Hands 12" for High Torque Movements, Black Spade Style

Name: Clock Hands 12" for High Torque Movements, Black Spade Style
Brand: Bear Woods Supply
SKU: QH-65
Price: 27.21 CAD
Availability: InStock

SKU: QH-65

clock hands for building large clocks and clock repair

Price:

$27.21 CAD

Quantity:

Customers viewed in last 24 hours

12" Black Spade Style Hands

These hands are USA Made of quality aluminum.

Tips for making larger wall clocks:

1. Second hands not included - we don't recommend second hands with high torque movements as they draw too much power.

2. Still want a second hand? - choose our balanced 10 inch red or black second hands that work with our Continuous Sweep High Torque Motors.

3. Scroll down to select a high torque movement to go with your hands. Or, click here.

4. Hands are measured from the center of the hole to the tip. The hour hands are proportionate.

If you are going to trim the hand to fit a particular size clock dial, the minute hand must remain balanced. Normally people just glue the material removed right under where it was cut from. You can check the balance of any minute hand just by placing the mounting hole on your fingertip. If it lays there flat then it’s balanced, but if it falls off your fingertip, it’s not properly balanced.

Not sure what parts would work best for you? Click here to learn how to select the right parts for your project.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Great Packaging

Great Packaging. Clock hands arrived in perfect condition, wrapped in cardboard and bubble wrap, secured to side of box! Shipping took awhile, but that's okay if there's no rush!

Thank you!! Great product and great service

The two items are exactly as described and exactly what I needed to fix my clock. The speed of service and delivery were amazing thank you so much.

Good selection

Good selection of parts and good quality. They worked well repairing my wifeâs favorite clock. The only complaint I have was the poor job packing the parts in the box they were shipped in. They were tumbling around in the box and the new clock hands were bent when I opened the box.

Just What I Needed

Customer service was so helpful. I emailed them a picture of the current clock hands I have. She pulled these for me abs they were a perfect replacement!! Thanks for your help!

Large clock parts

Ordering was easy, and customer service was excellent. A phone call was made to me, when CSR was unable to reach me by email. I received the parts quickly. I am a novice clock maker and was unsure how to assemble the parts, but was able to google it and detailed diagram was helpful. A instuctional insert with parts would be helpful for beginners. I am pleasedWith function and operation of clock parts, although I did have to fidget with hour and minute hands to get them in shaft properly. I will send photo of completed wood soool clock.I would recommend and use Bear Wood supply company parts again. Love shopping Canadian!!

1 2 3

How do I choose the right size clock motor & hands?

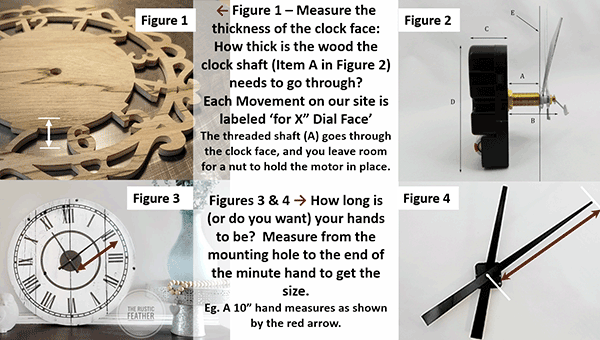

1) Refer to the figure here, or Click Here for helpful info (a new window or tab will open)

2) The size of hands is based on the length of the minute hand from the mounting hole to the end of the minute hand. (Figures 3 & 4)

3) Our clock motors are sized by the thickness of the dial the movements can go through. EG. High torque Q-64 will go through up to 5/8" thick material, while standard/mini motor Q-65 will go through 3/8" thick clock faces. (Figure 1 and item "A" in Figure 2)

Tip 1) If your material is too thick, consider removing some to in-set the clock. Or if your clock face material is too thin, consider adding some material behind the face so the hands will sit closer to your clock face.

Tip 2) Most hands can be slightly trimmed if need be.

Tip 3) Our customers also spray paint them.
