Clock Hands 5-3/8" for High Torque Movements, Black

Name: Clock Hands 5-3/8" for High Torque Movements, Black
Brand: Bear Woods Supply
SKU: QH-62
Price: 11.93 CAD
Availability: InStock

SKU: QH-62

High torque clock hands for building or repairing large clocks

Price:

$11.93 CAD

Quantity:

Customers viewed in last 24 hours

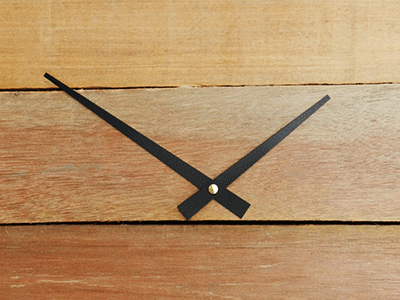

5-3/8 inch clock hands to make large clocks, tapered style

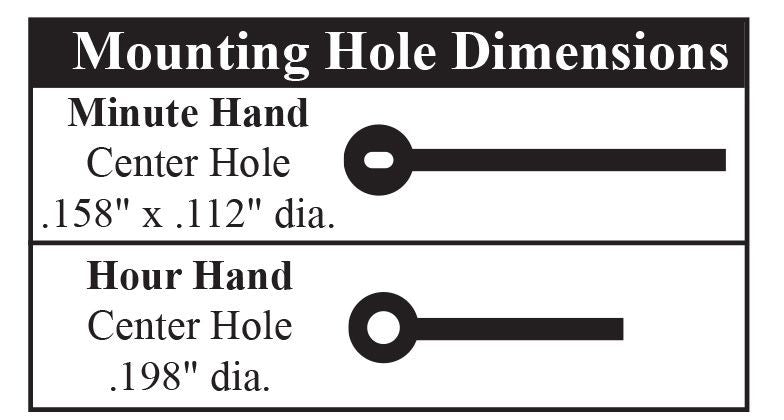

The measurement is from the hole where the hands mount onto the high torque shaft to the tip. Hour hands are proportionate.

These quality aluminum hands are USA made.

Tips for making larger wall clocks:

1. Second hands not included - we don't recommend second hands with high torque movements as they draw too much power.

2. Still want a second hand? - choose our balanced 10 inch red second hands that work with our Continuous Sweep (Silent) High Torque Motors.

3. Scroll down to select your movement to go with these hands. Or click here.

4. These hands can be trimmed to a shorter length if you keep the hand balanced. (just put the mounting hole of the minute hand on your fingertip to check the balance) They can be spray painted another color.

Not sure what parts would work best for your project? Click here to learn how to select the right movement and hands.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Happy Customer

Very happy with the hands and high torque movement .Arrived in good condition and working well.I recommend this product.

Adequate Hands

I haven't put them to use yet, but they seem fine. A little thin, I will have to be careful not to bend them.

Will buy again soon

Parts are great. Will buy again soon.Attached project completed

Showroom Manager

Great service, shipped quick and clients love it.

High Torque Movement

The motor fits perfectly and the clock hands look great

How do I choose the right size clock motor & hands?

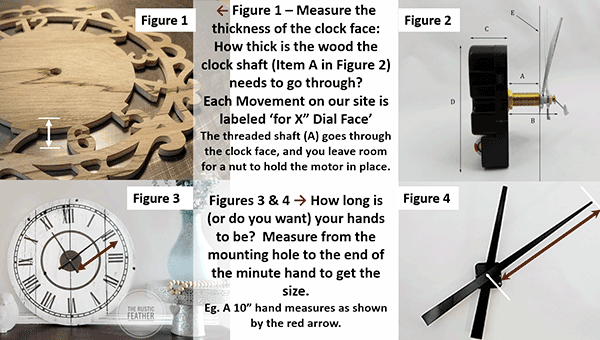

1) Refer to the figure here, or Click Here for helpful info (a new window or tab will open)

2) The size of hands is based on the length of the minute hand from the mounting hole to the end of the minute hand. (Figures 3 & 4)

3) Our clock motors are sized by the thickness of the dial the movements can go through. EG. High torque Q-64 will go through up to 5/8" thick material, while standard/mini motor Q-65 will go through 3/8" thick clock faces. (Figure 1 and item "A" in Figure 2)

Tip 1) If your material is too thick, consider removing some to in-set the clock. Or if your clock face material is too thin, consider adding some material behind the face so the hands will sit closer to your clock face.

Tip 2) Most hands can be slightly trimmed if need be.

Tip 3) Our customers also spray paint them.
