Description
Mini Quartz Clock Movements for 1/4 inch thick dial face
Our mini-quartz Auto set movements are a clock makers dream. Great for clock repair or clock building. These clock motors eliminate the unreliability issues of the atomic clock movement.
These clocks will automatically adjust for daylight saving time in both the spring and the fall. They will accurately drive clock hands up to 5 inches. Operating on one standard AA battery you clock will display accurate and reliable time throughout the year. Radio-controlled or atomic clocks have always had a problem getting reception from the AM radio frequency broadcast. On that Sunday morning after the daylight-saving time in the spring or fall, the auto set movements will automatically adjust and display the correct time.

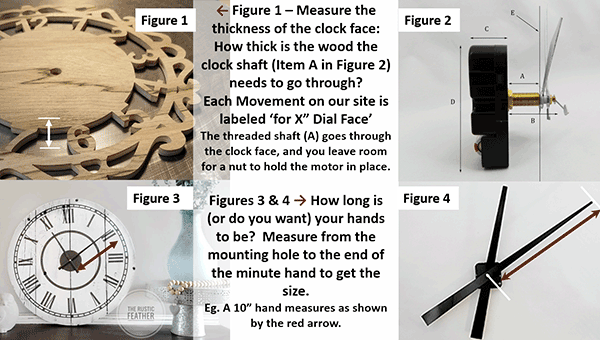

In selecting one of these state of the art clock movements be sure to get the proper Shaft Clock Works length. Remember a Shaft Clock Works length too short simply will not work. A Shaft Clock Works length a bit longer can always be shimmed back if need be. Additionally, note that the diameter of the mounting hole is 5/16”.
If your clock has a glass or plastic cover over the movement please make sure you have enough clearance for the clock hands. When adding a second hand you will need extra room for the second hand. If you do not have a second hand you will still need room for the minute hand cap nut. The minute hand cap nut comes with the free hardware package with every movement.
- American "I" Shaft Clock Works. - Diameter 5/16"
- Optional Front Loading Metal Hanger
- Optional Second Hand
- Runs On 1 "AA" Size Battery
- Will update at both DST changes only in the USA.
- Our Daylight Saving Motors are capable of operating clock minute hands up to 5”
Click just above on "Choose your clock hands" to choose your clock hands for this type of movement. There are about 25 free clock hands options available and many more for purchase.
Please note free clock hands are only available per each movement purchased and if not selected at time of purchase, there will be an extra shipping charge. Also note that hangers and the rubber washer are sold separately - find them at the same spot as where you choose your clock hands.
Need clock hands longer than 5 inches? Click here for high torque clock parts
Hardware Included
Optional Hardware
| Add an Black Endcap for $0.50 |  | |
| or Add an Endcap for $0.50 |  |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Install a FRESH Duracell or Energizer Battery (But not a rechargeable type). In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.
