Description

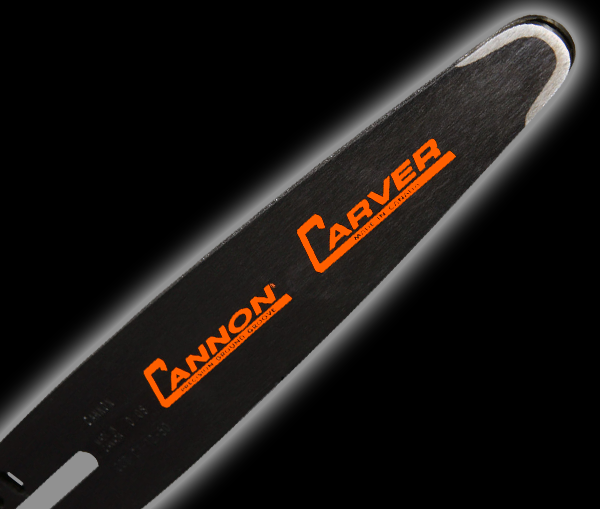

12-inch Quarter Tip Chainsaw Carving Bar
Shape wood sculptures with the Cannon 12-inch Quarter Tip carving bar. This C1-mount bar offers a choice of recommended chain pitches in .050-inch (1.3 mm) gauge, making it a versatile option for a correctly configured carving saw.
Check your setup: Use 1/4-inch, .325-inch or 3/8-inch LOW PROFILE chain; standard 3/8-inch chain is not suitable. Chain gauge must match this .050-inch bar. Cannon recommends quarter tip .050 bars for petrol saws 50cc and under. For battery/electric saws, confirm the specific setup with Cannon. Chain and drive sprocket are not included.
Specifications
| Manufacturer part number | CCQ-C1-12-50 |
|---|---|
| Bear Woods SKU | CA-Q12-50 |
| Bar length | 12 inches (30.48 cm nominal) |
| Tip style | Quarter Tip |
| Approximate nose diameter | 1 inch |
| Mount | C1 |
| Chain gauge | .050 inch (1.3 mm) |
| Country of origin | Canada |
| Contents | One guide bar; chain and drive sprocket not included |
Chain configurations
| Chain pitch | Drive links |
|---|---|
| 1/4 inch (0.250) | 64 |
| .325 inch | 50 |
| 3/8 inch low profile only (Cannon lists .370) | 45 |
Made in Canada by Cannon Bar Works Ltd.
| Manufacturer part number | CCQ-C1-12-50 |
|---|---|
| Bear Woods SKU | CA-Q12-50 |
| Bar length | 12 inches (30.48 cm nominal) |
| Tip style | Quarter Tip |
| Approximate nose diameter | 1 inch |
| Mount | C1 |
| Chain gauge | .050 inch (1.3 mm) |
| Country of origin | Canada |
| Contents | One guide bar; chain and drive sprocket not included |
| Chain pitch | Drive links |
|---|---|
| 1/4 inch (0.250) | 64 |
| .325 inch | 50 |
| 3/8 inch low profile only (Cannon lists .370) | 45 |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Use 1/4-inch, .325-inch or 3/8-inch LOW PROFILE chain; standard 3/8-inch chain is not suitable. Chain gauge must match this .050-inch bar. Cannon recommends quarter tip .050 bars for petrol saws 50cc and under. For battery/electric saws, confirm the specific setup with Cannon. Chain and drive sprocket are not included.
Keep the bar groove and oil passages clear and follow the saw and chain manufacturer's tensioning, lubrication and operating instructions.
