USA Made Standard Pendulum Quartz Clock Movement (up to 5/8" thick dial face)

Name: USA Made Standard Pendulum Quartz Clock Movement (up to 5/8" thick dial face)
Brand: Bear Woods Supply
SKU: Q-35
Price: 21.95 USD
Availability: InStock

SKU: Q-35

Clock mechanisms for building clocks or clock repair compatible with small hands

Price:

$21.95 USD

Quantity:

Choose your free clock hands:

Customers viewed in last 24 hours

Compact Pendulum Quartz Clock Movements (up to 5/8" thick dial face)

These Pendulum Clock Mechanisms are ideal for compact clock cases. These clock motors run a step second hand on a single 'AA' battery, come with a 1 year warranty, and are USA Made. Fantastic replacement clockworks, or easy to use to make new clocks.

Mini Pendulum Mechanism Features:

Mini Pendulum Movement Size 2-1/8 inches wide x 3-5/8 inches high x 7/8 inches deep.
1 year Warranty
USA Made
Step Second Hand (optional)
Powered by AA Battery (Not Included)
Mounting hardware (washer, hex nut, open end nut) included. Hanger sold separately.

Compact Pendulum Clock Mechanism Shopping Tips:

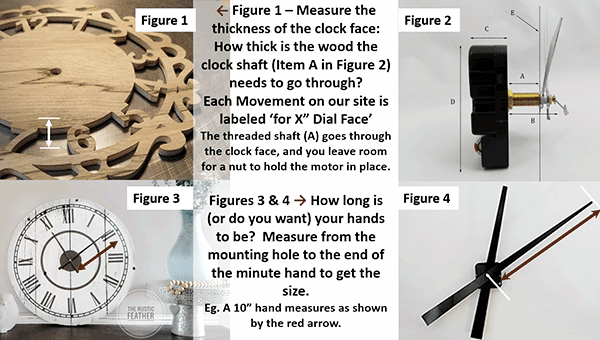

1) Choose your movement based on the thickness of the clock face/dial you are using or making. Learn how to choose the right size clock hands and clock motors.

2) Mix and Match Sizes of Pendulum Clock Movements to get a better price.

3) If you forget to add hands or the pendulum rod/bob and you'd still like the hands or rod and bob a separate shipping fee will apply. We always recommend new hands, as older hands may not fit the American I Shaft design.

Shop here for your Pendulums and Hands to Go With This Pendulum Quartz Clock Motor

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Restored two decorative clocks

I bought two of these movements to restore function to two whimsical wall clocks that we'd received as Christmas gifts some years ago and had always enjoyed looking at. After mistakenly buying "I-shaft" movements from another vendor which couldn't accommodate the original hand sets, I bought two of these. They were easy to fit and install, all three hands fit perfectly, the pendulums function great, and they're keeping very accurate time. Very happy!

very satisfied

Efficient online ordering process. Order was processed immediately and delivered within 3 business days.

Very nice movement.

I used this in a clock I built, and it works great. The movement is very quiet, and it is an easy install.

Happy customer

Very good service

Clock Motor Fits & Works Well

I needed a long shaft clock motor to replace one on a specially made artistic clock that stopped working. This one works perfectly! And it was a plus that it was constructed in the European style so my old clock hands worked with this new motor as well! The only downside was that it took over a week for it to arrive here.

1 2 3

**When repairing a clock we always recommend new hands as your old ones may not fit.

Dimensions:2-1/8 inches wide x 3-5/8 inches high x 7/8 inches deep/li>

Overall Shaft Length:1"

Threaded Shaft Diameter:5/16"

Threaded Shaft Length: 11/16"

Runs on 1 AA battery

Runs hands up to 4-7/8" inches long

Works with Material up to 5/8" thick

The maximum capacity for pendulums on this movement is 100 grams (3-1/2 ounces).

Pendulums swing without battery power - using momentum and magnet. Keep your clock level and perpendicular to the ground for continuous pendulum motion. For a battered powered pendulum consider our Heavy Duty Pendulum Drive QB-DRV

Hardware Included

Brass Washer

Hex Nut

Open End Nut

Hanger Sold Separately

Optional Hardware

Add an Black Endcap for $0.50	Quantity
or Add an Endcap for $0.50	Quantity

Install a FRESH Duracell or Energizer Battery (But not a rechargeable type). In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.
