USA Made Standard Quartz Clock Motors (up to 5/8" thick dial face)

Average rating:
average rating 96%
54 reviews
Or Click Here to Explore all reviews
Quantity   1 - 4     5 - 9     10 - 24     25 - 49     50 - 99     100+
Price $9.50 $8.00 $7.30 $6.50 $4.25 $3.65
Per USA Made Clock Motor. Choose FREE or Premium Clock Hands
Our Product Code: Q-15
Quantity:

Checkout/Estimate Shipping
Share Share on Facebook Share on Pinterest

Mini Quartz Clock Movements for 5/8 inch thick dial face

These movements made in the US by Takane and work with hands under 5 inches long.

  • Accurate Within 2 Minutes A Year
  • 3 Year Warranty
  • OK for outdoor use if sheltered from rain.

Click just above on "Choose your hands" to choose your hands for this type of movement. There are about 25 free hand options available and many more for purchase.

Please note free hands are only available per each movement purchased and if not selected at time of purchase, there will be an extra shipping charge. Also note that hangers and the rubber washer are sold separately - find them at the same spot as where you choose your hands.

Need hands longer than 5 inches? Click here for high torque options

Specifications
  • Dimensions: 2-1/8 inch x 2-1/8 inch x 5/8 inch thick

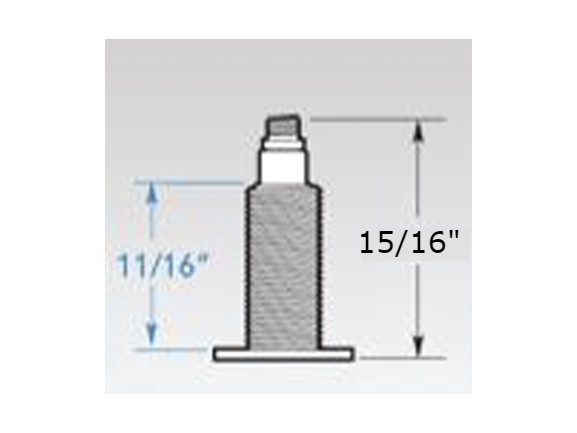

  • Overall Shaft Length: 15/16"
  • American I Shaft Diameter: 5/16 inch
  • Runs on 1 (AA) Size Battery
  • Runs up to 4.5" Clock Hands
  • Fits 3 inch Diameter Hole or Flush Mount
  • Works with material up to 5/8" thick

  • Hardware Included

  • Brass Washer
  • Hex Nut
  • Open End Nut



  • Optional Hardware

    Add an Black Endcap for $0.50
    or Add an Endcap for $0.50

    Average rating:
    average rating 96%
    54 reviews

    Click Here to Write a Review || Or Click Here to Explore all reviews

    Featured positive reviews:

    average rating 100%
    Bearwood has it! 06/27/2018
    By J Campbell
    Had a terrible time finding a clock movement for a very thick clock face. Found Bearwood and they had everything click related. The measuring explanations were very clear and I was able to find just what I needed. Thanks, Bearwood.
    average rating 100%
    Just what I need 06/28/2016
    By Ethel Bulsterbaum
    I do different styles of clocks as a hobby, so I need different sizes of movements for - hub caps - wood chunks - glass sheets etc. You have them all. Thanks
    average rating 80%
    Mr 04/12/2017
    By Edward Hales
    I am pleased with the items purchased. They arrived a day or two earlier than expected - which was nice. I had ease of installation with no mishaps. The movement is working nicely and is keeping good time.

    I am very satisfied. The clock I own was made mid-nineteenth century. At some point (probably the 1940's-1950's) the original works had been removed and an electric motor installed. The clock face was retained along with the cast so its original appearance is intact. I despaired at finding a new movement when the electric motor died. I wanted a new movement that would allow me to keep the original clock face. Your website was helpful in understanding installation and adaptation of a quartz movement to an older clock. I am happy with my choice. Thank you.
    average rating 80%
    Clock mechanism measurement. 09/20/2018
    By Michael MacKillop
    Unfortunately the shaft thickness of the clock mechanism I ordered was too thin for the clock whose mechanism I was changing. Perhaps I just didn't understand your measurements as listed but I couldn't find any reference to the shaft thickness. For people like me an indication of this important detail would certainly be a help.

    Delivery was good as was the packaging. Keep up the good work. This is not the last mechanism I will be ordering from you.

    M.McK.
    average rating 100%
    Beyond happy consumer 12/14/2019
    By Charles Lombardo
    The quality, products, and customer service at Bear Woods is the best we have seen in a world inundated with impersonal box stores. Every detail – from selecting, ordering and customer questions - is handled personally by their excellent staff. I needed an item quickly and they were eager to accommodate me. I recommend this company to family, friends, and anyone who wants to buy from an establishment willing to satisfy your product needs. Thank you Bear Woods.
    average rating 100%
    Great Clock Movements 11/29/2013
    By William Stinson
    I have ordered more than once from Bearwood and I am very satisfied with the product and the service. I use these clock movements for hobby projects and the choices available are outstanding. The only negative is that the second hand needs to be offered in more colors than just red. I have had to paint some white to match my project. I highly recommend Bearwood to anyone needing clock movements
    average rating 100%
    Happy customer 11/15/2019
    By Howard Kirschbaum
    I have worked with your company a number of times with only one small problem which was corrected right away. I have been a satisfied customer and will deal and order additional components soon. Shipping and packaging is acceptable. customer service as been very helpful and easy to work with. With the service I have experienced I have no reason to shop around. Thanks
    average rating 100%
    Great Customer Service 03/05/2021
    By Barry E
    I ordered a clock movement and hands to replace the guts of an important living room clock. After installing the new parts I noticed that it did not keep correct time... After contacting Bear Wood, they immediately sent me a replacement and now the world is wonderful once again...
    Thanks, Bear Wood for the great customer service....
    average rating 100%
    Mr. 07/24/2018
    By Raymond Lambert
    Well it certainly was a pleasure to work with a professional and get the job done. My needs were described over the phone, your rep new what the solution was and finding out it was made in the States, was all very good news. The package arrived one day earlier than stated and everything fit like a glove. Great company to work with
    average rating 100%
    Perfect! 01/21/2019
    By Constance Myers
    I was happy to find the Bear Woods site online and order the exact thickness clock movement I had been unsuccessfully searching for locally. Many clock hand options were available to compliment the style of the clock face. Installation was easy! Received my order very quickly. In other words, the complete transaction was perfect!
    average rating 100%
    Clock Hands 11/25/2017
    By Oliver w
    Just press in all the hands at 12 o'clock position. Then make sure that the hands are parallel to each other. Next adjust the time to the local time, watching carefully that when the hands are passing each other, they have enough space between them. That is it. The clock is keeping good time for several days now.
    average rating 100%
    movement and hands 08/31/2018
    By Eugene Yeager
    Your items were perfect for my application. I was replacing a mechanical movement with battery operated. You were the only people on the web who gave all tne necessary information about movement and shaft length and also offered an excellent choice of hands to meet all applications.

    Thanks
    average rating 100%
    Perfect solution to my problem 08/11/2018
    By Andrew Bergen
    The product (clock movements) was easy to order. There were instructions on the website to determine which exact part I needed to repair my clock. The price was reasonable and shipping was quick. I don't have many clocks, but would do business here again in the future if needed.
    average rating 80%
    Clock mechanism 02/19/2019
    By John Kroll
    This was for an outdoor terra cotta clock. It has stopped a couple of times in the two weeks since installation, but it works when it's reset to the right time. The customer service person was very helpful, more helpful than the website, which is hard to navigate.
    average rating 60%
    Undetermined 09/28/2019
    By Marj Liberatore
    I haven't been able to use the item yet because the clock hands didn't come with it. I thought I had ordered them, but it turns out that I didn't. I'm now waiting for the hands to come in. Your website was very difficult to navigate.
    average rating 100%
    Extra motor received, didn't order! 11/18/2019
    By Joanne Donnellan
    The clock motor works great. However, after ordering it I received an e-mail from you saying the order didn't go through and I needed to reorder the item, which I did. Then, I wound up receiving two clock motors. Only needed one.
    average rating 100%
    Happy Customer 06/17/2015
    By Florid & Fallow
    We order these clock movements on a regular basis. They work perfect for what we are needing them for. They are sturdy and well made. Happy to see they are made in the US. We will continue to happily place orders with this company.
    average rating 100%
    Perfect! 02/17/2018
    By Janice VanOfwegen
    Hello. My purchase was small but perfect!! Easy to assemble but wish instruction sheet was with mechanism. Arrived 2 days after ordered and I was thrilled👍🏼👍🏼
    Thank you!!!
    Jan
    average rating 100%
    Great products and service 03/12/2018
    By Dale
    I ordered 2 clock works and hands. The order was shipped very quickly. The items were well packaged, and they are working well. Very happy with this company. I will shop here again.
    average rating 100%
    product review 11/01/2018
    By Ron Wray
    I FOUND THE HANDS AND CLOCK MOVEMENT TO BE OF GOOD QUALITY AND EASY TO MOUNT ON THE CLOCK BODY. THE CLOCK NEVER KEPT PROPER TIME IN OVER 20 YEARS,BUT NOW IT IS PERFECT.
    average rating 100%
    Clock Parts 05/30/2018
    By W. Hay
    Order shipped immediately and arrived on time. Parts were exactly as ordered and were in perfect operating condition. I would be happy to buy from Bear Woods again.
    average rating 100%
    Customer Review 12/29/2017
    By DON Wetmore
    Very pleased with the product ordered and your service. Only complaint I might offer was the cost of shipping especially considering the size & weight of product .
    average rating 100%
    Arrived quickly 07/26/2018
    By Candice Sheriff
    We were so pleased to get our order nice and quickly! It came a couple days before our big show- we were a bit behind on ordering, but so happy to receive in time!
    average rating 100%
    Happy customer 12/10/2020
    By Randall Harp
    The clockworks was exactly what I needed and
    Included all small parts to replace it.
    The large face clock is working beautifully.
    Thank you!
    Randy H
    average rating 100%
    Good quality 12/19/2020
    By Robert Ross
    The clock motor works well. It replaced one my father had put in the hand crafted clock he had made many years ago. I hope the new will last as long.
    average rating 100%
    Clock movement order 01/01/2018
    By trem
    Excellent service! Not only the website is very well done to let you know the best mechanism/hands are, but delivery/handling is excellent. Thanks!
    average rating 100%
    Rave 06/05/2019
    By Jacqueline Andrews
    You all are simply wonderful, my clock is running, keeping great time and I did it with your products and help in ordering. Thank you.
    average rating 100%
    Good Movement 12/24/2017
    By Donald Chow
    The second quartz movement (5/8 inch shaft) installed in a small "Anniversary-type " clock has worked perfectly since being installed.
    average rating 100%
    Very pleased 09/05/2018
    By Barbara A Bird
    Very pleased with my clock parts. My outdoor terracotta clock now lives again. No problem with the price of the item, Cda.Post, OTOH
    average rating 100%
    Fast 02/12/2021
    By eric reece
    Quality stuff sent much faster than disclaimer and a website that made ordering quite simple! I will never order from any one else
    average rating 100%
    Just What I Needed 08/28/2019
    By C_Texas
    Item fit perfectly and was easy to install. Great information on the website about the item made it easy to get the right item.
    average rating 100%
    very pleased 02/27/2021
    By Becky Torrisi
    The clock mechanism was carefully packaged and performed beautifully. I will definitely be a repeat customer.
    average rating 100%
    Works Perfect 08/22/2017
    By James Morrison
    Greeting from Nova Scotia. Product arrived and all works perfect. I am very satisfied with you service
    average rating 100%
    Works Perfectly 09/27/2017
    By James Morrison
    Greeting from Nova Scotia. Product arrived and all works perfect. I am very satisfied with you service
    average rating 100%
    Part works 07/12/2018
    By MARILYN RAPPAPORT
    The clock mechanism is great but the hands did not fit the unit. Luckily my old hands worked.
    average rating 100%
    Mexican clock 02/19/2018
    By Brian Moore
    Parts were ordered and shipped promptly. Parts installed and clock works and looks great
    average rating 100%
    happy 01/22/2020
    By Ross Sheldon
    purchase arrived on time and no damage. quality seems good.shipping seemed excessive.
    average rating 60%
    0verall happy 12/09/2019
    By Howard Kirschbaum
    Packaging was poor, parts were loose and one unit is damaged and unusable
    average rating 100%
    Clock Mechanisms 12/31/2017
    By Karol Chordas Sr
    Easy to order. Promptly delivered. Quality product. Thanks very much!
    average rating 100%
    Timely Shipping 08/03/2017
    By David E. Stover
    I received the items that i ordered in a timely manner. Thanks much.
    average rating 80%
    Review 04/02/2018
    By David Snyder
    Review everything was delivered in a timely manner with good quality
    average rating 80%
    Worked as planned 02/03/2021
    By Joyce Johns
    We really like the looks. A little difficult to put the hands on.
    average rating 100%
    Great quality 01/21/2020
    By Max Oran
    Easy to install and great quality. I’m happy with the product!
    average rating 100%
    Wonderful 05/14/2018
    By Elizabeth J. Allen
    You did wonderful--fast service and excellent product--thanks
    average rating 100%
    Very Pleased 02/04/2020
    By A Keck
    Quality merchandise, quick shipping and excellent prices.
    average rating 100%
    Clock movement 08/14/2018
    By Donald Woolgar
    Thanks for the quick delivery of the item I ordered.
    average rating 100%
    Whoo hoo! 05/24/2018
    By Brenda Burrows
    Great service. Exactly the right clock parts.
    average rating 100%
    clock motor 06/12/2018
    By Mark Tucker
    good value, as advertised, shipped quickly
    average rating 80%
    happy customer 09/16/2019
    By Paul Delia
    Great service and very timely sent.
    average rating 100%
    quartz clock movements 12/19/2017
    By Jim Day
    works great just what i wanted

    Tips

    Install a FRESH Duracell or Energizer Battery (But not a rechargeable type).  In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.

    Choose hands - the options here will fit your clock motor. We recommend our new, balanced hands.

    Click the tab "Choose Hands" to see hands that go with this clock motor.


    Optional Accessories

    Closed End Caps - This movement ships with an open end nut so you can also attach a second hand.  For a different look, choose a closed end cap - we have options in black and brass color.

    brass end caps for clock motors quartz

    Brass End Cap



    black end cap for quartz clock motors

    Black End Cap



    Hanger - Choose a hanger that slides over the clock motor if needed for your clock design.


    We also sell regular picture hanging hardware at great discount prices!  Shop here for versatile ways to hang your clocks and pictures.
