USA Made Standard Quartz Clock Mechanisms (up to 1/2" dial face)

Name: USA Made Standard Quartz Clock Mechanisms (up to 1/2" dial face)
Brand: Takane
SKU: Q-14
Price: 13.99 USD
Availability: InStock

SKU: Q-14

Clock mechanisms for building clocks or clock repair compatible with small hands

Price:

$13.99 USD

Quantity:

Choose your free clock hands

One eligible set with each movement. Extra sets are $2.50 USD each. Pick different styles for multiple movements.

One free hand set included. Choose yours in the next step. I don’t need Clock Hands

No hands selected yet.

Mini Quartz Clock Movements for 1/2 inch thick dial face

These movements made in the US by Takane and work with clock hands under 5 inches long.

Accurate Within 2 Minutes A Year
1 Year Warranty
Okay for outdoor use if sheltered from rain.
American "I" Shaft Clock Works.

Need clock hands? Choose Clock Hands Here for this type of movement. There are about 25 free clock hands options available and many more for purchase.

Please note free clock hands are only available per each movement purchased and if not selected at time of purchase, there will be an extra shipping charge.

Hangers and the rubber washer are sold separately - find them at the same spot as where you choose your clock hands.

Need clock hands longer than 5 inches? Click here for high torque clock parts

**When repairing a clock we always recommend new hands as your old ones may not fit.

Dimensions: 2-1/8 inch x 2-1/8 inch x 5/8 inch thick

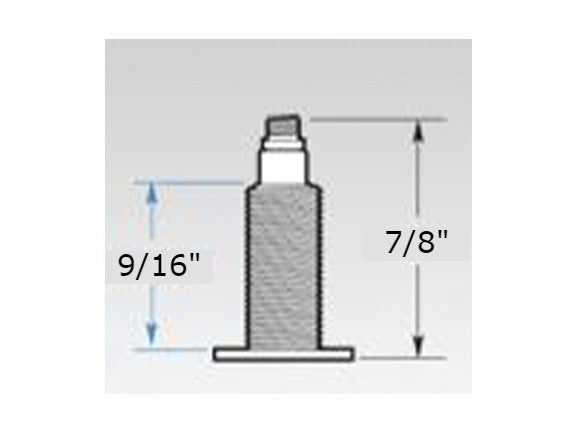

Overall Shaft Length: 7/8"

Threaded Shaft Length: 9/16"

American I Shaft Diameter: 5/16 inch

Runs on 1 (AA) Size Battery

Runs up to 4.5" Clock Hands

Fits 3 inch Diameter Hole or Flush Mount

Works with material up to 1/2" thick

Hardware Included

Brass Washer

Hex Nut

Open End Nut

Hanger sold separately

Optional Hardware

Add an Black Endcap for $0.50	Quantity
or Add an Endcap for $0.50	Quantity

My order (4/9/26) got lost in the mail. I contacted your Customer Service. The order was immediately shipped again and arrived as scheduled. Great customer service -- I sent an email to the Rep thanking her. As for the clock parts. Exactly what I needed and worked great. Thanks

okay

product was good ...shipping time is terrible

patient and forgiving customer

Sadly, the first one of these stopped and the time-change button locked up. I am expecting the replacement soon thanks to good customer service. However, I also received two other faulty mechanism (also quickly replaced) so it makes me wonder about the supplier.

happy customer

your item that I ordered worked out great except still having trouble with the hour hand it doesn't seem to line up with the time so I have to adjust it at times, I think it something I did wrong in the installation.

Great Replacement Movement

Ordered this item to replace a 30 year old Takane Movement. Ordering process and delivery were perfect.New movement works like a charm.

1 2 3

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Install a FRESH Duracell or Energizer Battery (But not a rechargeable type). In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.
