USA Made Standard Quartz Clock Mechanisms (up to 1/8" dial face)

Name: USA Made Standard Quartz Clock Mechanisms (up to 1/8" dial face)
Brand: Bear Woods Supply
SKU: Q-11
Price: 13.99 USD
Availability: InStock

SKU: Q-11

Clock mechanisms for building clocks or clock repair compatible with small hands

Price:

$13.99 USD

Quantity:

Choose your free clock hands:

Customers viewed in last 24 hours

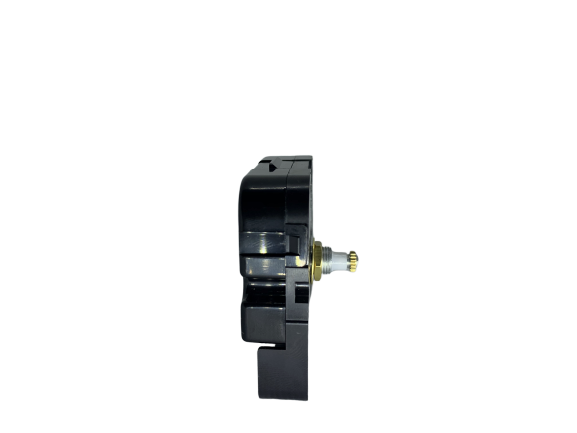

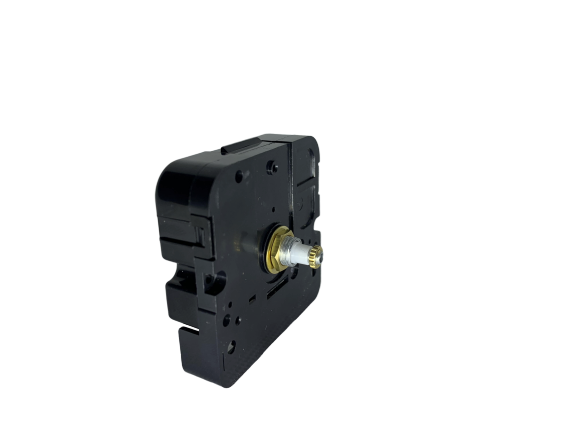

Mini Quartz Clock Movements for 1/8 inch thick dial face

These movements made in the US by Takane and work with clock hands under 5 inches long.

Accurate Within 2 Minutes A Year
1 Year Warranty
Okay for outdoor use if sheltered from rain.
American "I" Shaft Clock Works.

Need clock hands? Choose Clock Hands Here for this type of movement. There are about 25 free clock hands options available and many more for purchase.

Please note free clock hands are only available per each movement purchased and if not selected at time of purchase, there will be an extra shipping charge.

Hangers and the rubber washer are sold separately - find them at the same spot as where you choose your clock hands.

Need clock hands longer than 5 inches? Click here for high torque clock parts

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Great! Works well. I had to resize the hands as the space around the clock is about the same size as the enclosed area it's mounted in.

Great quality and satisfied customer

I am very satisfied with the clock mechanism I purchased and am happy with the entire order process from start to finish. The customer support team was very responsive to an initial query I had regarding the online order procedure. They got back to me quickly with a detailed response which impressed me to no end! The clock mechanism was as described on the web site and works very well - keeps excellent time, runs smoothly, and operates silently - no ticking! Very straightforward to mount on the clock face. All components including the hands and black end cap (both ordered separately) fit together with no problem. Very high quality product considering the low price. I would not hesitate to order another clock mechanism from the Bear Woods company.

My Clook Is Working Again

I had no idea how easy it would be to replace the failed mechanism in my kitchen wall clock. I had put up with its mostly not working for three years. Thanks to your tutorials, I became convinced I could bring it back to life, and was able to do so in a matter of minutes after purchasing your replacement parts. Thank you!

Great customer service

I was replacing a clock movement that had been damaged by a faulty battery. I could not find the exact movement, but with Bear Woods help I got a movement that was a great fit. Thanks for their help.

happy customer

good service and quality

1 2 3

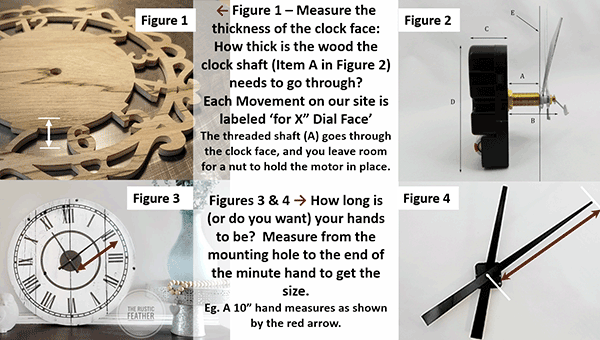

**When repairing a clock we always recommend new hands as your old ones may not fit.

Dimensions: 2-1/8 inch x 2-1/8 inch x 5/8 inch thick

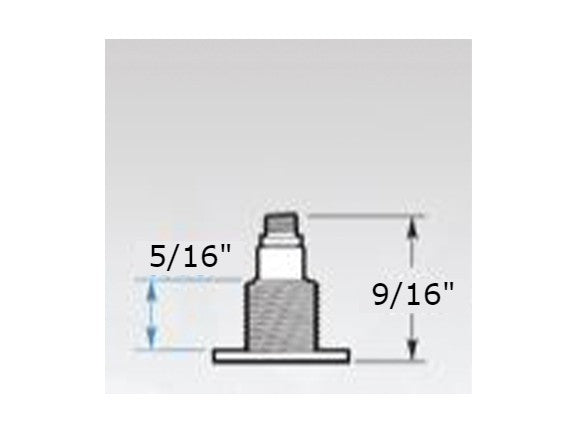

Overall Shaft Length: 9/16"

American I Shaft Diameter: 5/16 inch

Runs on 1 (AA) Size Battery

Runs up to 4-7/8" Clock Hands

Fits 3 inch Diameter Hole or Flush Mount

Works with material up to 1/8" thick

Hardware Included

Brass Washer

Hex Nut

Open End Nut

Hangers sold separately

Optional Hardware

Add an Black Endcap for $0.50	Quantity
or Add an Endcap for $0.50	Quantity

Install a FRESH Duracell or Energizer Battery (But not a rechargeable type). In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.
