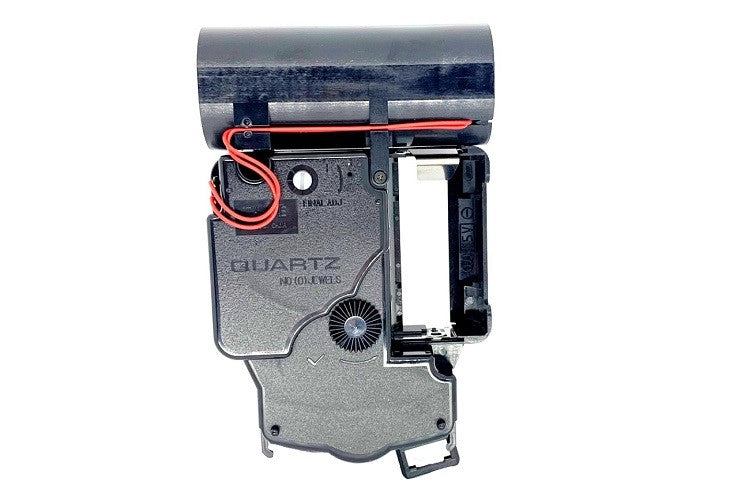

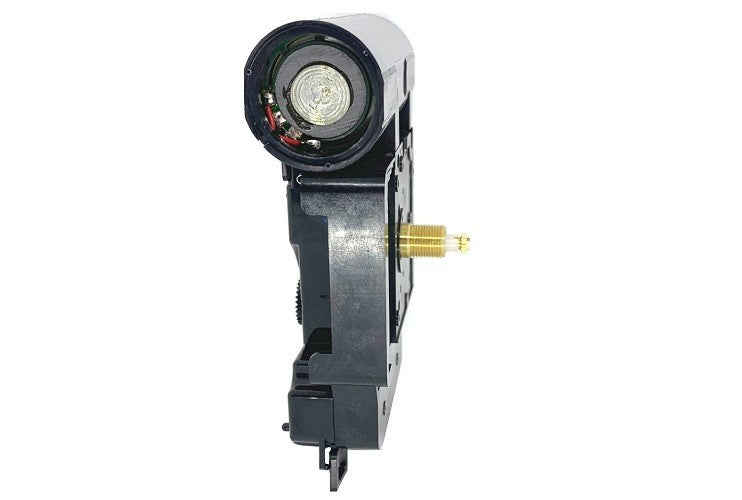

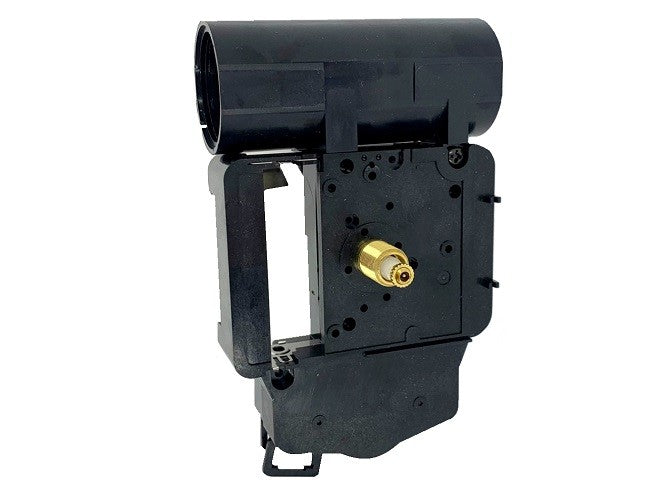

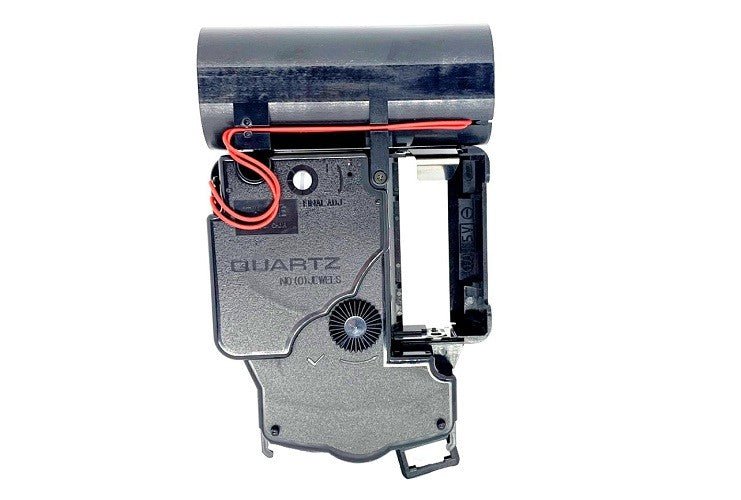

Westminster Chime + Pendulum Quartz Clock Movement (up to 3/8" thick dial face)

Name: Westminster Chime + Pendulum Quartz Clock Movement (up to 3/8" thick dial face)
Brand: Bear Woods Supply
SKU: Q-53
Price: 89.99 USD
Availability: InStock

SKU: Q-53

westminster chime and pendulum quartz clock movement

Price:

$89.99 USD

Quantity:

Choose your free clock hands

One eligible set with each movement. Extra sets are $2.50 USD each. Pick different styles for multiple movements.

One free hand set included. Choose yours in the next step. I don’t need Clock Hands

No hands selected yet.

Westminster Chime Pendulum Quartz Clock Movements for Clock Faces up to 3/8" thick

Full-sized quartz movements with built in speaker plays a portion of the traditional Westminster Chimes melody of a grandfather clock every quarter hour, as well as counting out the hours on the hour along with the full Westminster Chimes melody. These are very popular movements, and they are very easy to use! These are great to use as replacement clockworks or when making a new clock.

Pendulum and Chime Clock Mechanisms Features:

Pendulum + Chime Movements Case Size 3 inches wide x 4-3/4 inches high x 1-1/4 inches deep.
Chime Synchronization Knob
Built in Speaker, Full Westminster Chiming Functions
1 year Warranty
Step Second Hand (optional)
Powered by C Battery (Not Included)
Mounting hardware (brass washer, hex nut, and open end nut) included. Hangers sold separately.

Westminster Pendulum Clock Mechanism Shopping Tips:

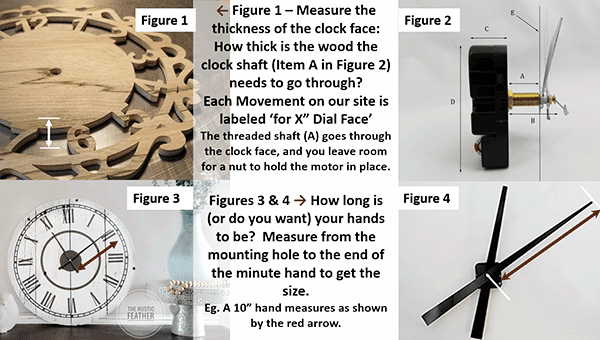

1) Choose your movement based on the thickness of the clock face/dial you are using or making. Learn how to choose the right size clock hands and clock motors.

2) Mix and Match Sizes of Pendulum Clock Movements to get a better price.

3) If you forget to add hands or the pendulum rod/bob and you'd still like the hands or rod and bob a separate shipping fee will apply. We always recommend new hands, as older hands may not fit the American I Shaft design.

Shop here for your Pendulums and Hands to Go With This Pendulum Quartz Clock Motor

**When repairing a clock we always recommend new hands as your old ones may not fit.

Stock #	For Clock Dials / Face Material Up To:	Threaded Shaft Length	Overall Shaft Length
Q-53	3/8" thick	7/16"	3/4"
Runs Clock hands up to 4-1/2" Long. Want to make a larger clock? Consider High Torque Pendulum Clock Movements which will run hands up to 18" Long.

The maximum capacity for pendulums on this movement is 100 grams (3-1/2 ounces).

Pendulums swing without battery power - using momentum and magnet. Keep your clock level and perpendicular to the ground for continuous pendulum motion. For a battered powered pendulum consider our Heavy Duty Pendulum Drive QB-DRV

Hardware Included

Brass Washer

Hex Nut

Open End Nut

Optional Hardware

Add an Black Endcap for $0.50	Quantity
or Add an Endcap for $0.50	Quantity

You include instructions on installing the movement especially settting the time correctly. I finally figured that out after researching and trial and error.

Happy Customer

Had a very nice Howard Miller Westminster Chime wall clock for many years. It stopped working and I didnât want to get rid of such a nice clock. Found the exact parts I needed at Bearwood. Very easy replacement of the clock movement had my clock working better than before. Very happy customer!

Downgrade in quality.

New movement looks the same but quality greatly reduced from my previous movement. The chime is almost inaudible so I installed the speaker andvtube from the old one. Also it will not swing my pendulum.

Great quality

The experience with your company was great as far as ordering and tge shipping was everything promised. However, I was unable to use the movement due to the shaft being too short. I should have measured better.

I will be a repeat customer if required

Nice to have a transaction that is "no issues".

1 2 3

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Learn how to set your Westminster Chime Clock Motor

Install a FRESH Duracell or Energizer Battery (But not a rechargeable type). In our experience, these are the only batteries that are reliable for clock mechanisms.
