Adirondack Chair - Woodworking Plan
Muskoka Chair Plan - Autocad Size Instant Downloadable Plans
NOTE: The instructions will print to letter size paper and the Templates will print to CAD - so email the file to your local print shop (or save it to a memory stick and take it to them).
The link to instantly download your woodworking plans will be in your emailed receipt after making your purchase.
The Downloadable Adirondack Chair Plan includes:
- Part sizes in standard and metric dimensions
- Assembly instructions with matching step-by-step color photos & amp
- Parts pictures.
- The CAD generated PDF will print full size patterns on any plotter at your local print shop. Simply email the PDF to your printer or drop off a memory stick and pick them up.
- Your files will appear immediately after payment, with no shipping costs or wait time.
- CAD size templates are included with the downloadable instructions.
- Please check your email, spam, and trash for your instructions within twelve hours of payment.
- Dimensions - 32 1/2" width x 37" diameter x 38" height(82.6 cm W x 94 cm D x 96.5 cm H)
- Check out all Barley Harvest Plans available at Bear Woods Supply.
- You might also be interested in some of our other plans and patterns including Charles Dearing scroll saw patterns and Toys and Joys plans. You can check them all out here.
- Join us on Facebook by searching Bear Woods Supply. We would love to see you join our family and the woodworking community we are so privileged to be a part of!
Please Note: These CAD files are security protected and can only be printed. They cannot be converted to DWG or DXF format. DWG & DXF plans for CNC routers are available in Phil Barley's shop.
From Phil Barley, the plans Author:

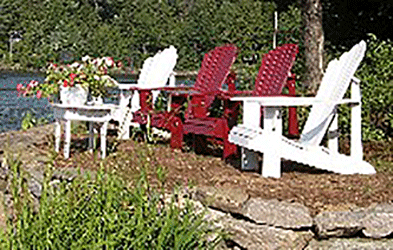

There are many, many different patterns for Adirondack chairs, to say the least, but this one is a sentimental favorite. I recently refurbished this last surviving chair of six, built by my Grandfather in the 1930's, at our Muskoka, Ontario cottage.
The traditional curved top is shown on the right. The plans also include patterns for the other back designs; scalloped and picket fence.
I can attest to it's comfort as I sit in it every weekend morning, listening to the loons and sipping my coffee, just as my parents and Grandparents did before me.
The original Adirondack chairs had flat backs and seats, but eventually the rigid lines became more relaxed and comfortable. I have sat in many styles around cottage country, and still think this pattern is the most comfortable.
The tall, curved back cradles you and the 19" (48.3cm) wide seat wide seat is contoured and curves under your knees. The low profile allows you to stretch out your legs. The 7 1/2" (19cm) wide arms of this chair, will hold a dinner plate or magazine, and comfortably rest your arms with coffee in hand.
I have extended the height of the original back, so that taller people can rest their head. I have also lowered and added a curved back seat slat, to match the curve of the back slats. This eliminates the "butt-bite", of the original design caused by the space left between the back slats and the last seat slat. Plans also include pictures and dimensions of the taper sled I use on my table saw to cut the back slats and back support pieces.
The chair is totally constructed of 3/4" (1.9 cm) pine and can also be made with cedar fence boards. Some plans use 1" (2.54 cm) to 1 1/2" (3.8 cm) stock for the legs and arms though I find these too heavy-looking.
Download your plans right away! Click the link on the Thank You Page after your purchase completes, or Click the Name of the Woodworking Pattern in your Receipt email from Bear Woods Supply.
For plans ending in AC for AutoCad - take the file to your print shop or email it to them for full-size printing.
