USA Made Compact Pendulum Quartz Clock Movement (up to 1/4" thick dial face)

Average rating:
average rating 99%
20 reviews
Or Click Here to Explore all reviews
Quantity   1 - 4     5 - 9     10 - 24     25+
Price $17.95 $15.75 $14.95 $14.50
Per Each Movement - Hands and Pendulum by Selection Only
Our Product Code: Q-31
Quantity:

Checkout/Estimate Shipping
Share Share on Facebook Share on Pinterest

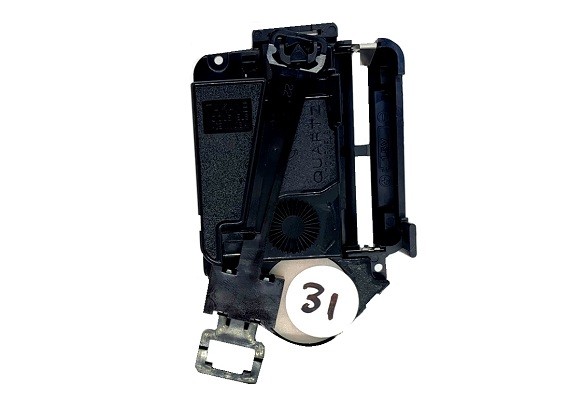

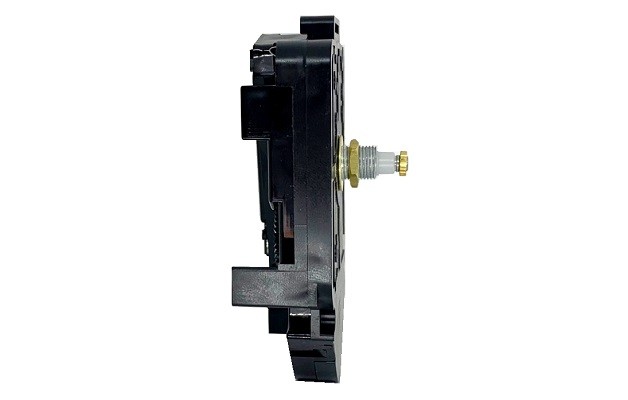

Compact Pendulum Quartz Clock Movement (up to 1/4" thick dial face)

These Pendulum Clock Mechanisms are ideal for compact clock cases. These clock motors run a step second hand on a single 'AA' battery and comes with a 3 year warranty and is USA Made.

Mini Pendulum Mechanism Features:

  • Mini Pendulum Movement Size 2-1/8 inches wide x 3-3/8 inches high x 7/8 inches deep.
  • 3 year warranty
  • USA Made
  • Step Second Hand (optional)
  • Powered by AA Battery (not included)
  • Mounting hardware (washer, hex nut, open end nut) included. Hanger sold separately.

Compact Quartz Clock with Pendulum Shopping Tips:

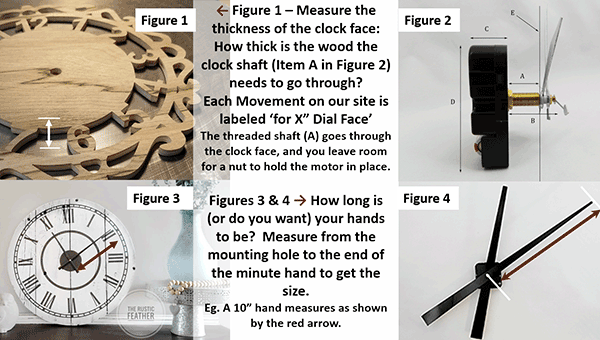

1) Choose your movement based on the thickness of the clock face/dial you are using or making. Learn how to choose the right size clock hands and clock motors.

2) Mix and Match Sizes of Pendulum Clock Movements to get a better price.

3) If you forget to add hands or the pendulum rod/bob and you'd still like the hands or rod and bob a separate shipping fee will apply.  We always recommend new hands, as older hands may not fit the American I Shaft design.

Shop here for your Pendulums and Hands to Go With This Pendulum Quartz Clock Motor

Specifications
Stock #

For Clock Dials /
Face Material Up To:

Threaded Shaft Length

Overall Shaft Length

Q-31

1/4" thick

5/16"

5/8"

Runs Clock hands up to 4-1/2" Long. Want to make a larger clock? Consider High Torque Pendulum Clock Movements which will run hands up to 18" Long.

  • The maximum capacity for pendulums on this movement is 100 grams (3-1/2 ounces).
  • Pendulums swing without battery power - using momentum and magnet. Keep your clock level and perpendicular to the ground for continuous pendulum motion. For a battered powered pendulum consider our Heavy Duty Pendulum Drive QB-DRV

  • Hardware Included

  • Brass Washer
  • Hex Nut
  • Open End Nut



  • Optional Hardware

    Add an Black Endcap for $0.50
    or Add an Endcap for $0.50

    Average rating:
    average rating 99%
    20 reviews

    Click Here to Write a Review || Or Click Here to Explore all reviews

    Featured positive reviews:

    average rating 100%
    Happy as a Clam 03/07/2020
    By Andrew D Pohlman
    The Bear Woods web site had all the tools and info I needed to find a replacement clock movement that fit perfectly. I just took the measurements they said and searched for the unit and ornamental hands that matched that data.

    The part itself has been working flawlessly for about 4 weeks so far. It was used to restore a "Regulator" clock with sentimental value for my wife and I.
    average rating 100%
    Perfect Match 05/04/2018
    By Michael J.
    Thank you for the prompt service, and having the part I needed. Since this part sometimes includes other necessary parts; you were kind enough to check with me (on the pieces I did not order) to see if my order was complete. I received the cock movement in a few days... installed it, and it works great. Thank you.
    average rating 100%
    Semi Happy Customer 04/18/2020
    By EVERETT STEELE
    Although I rating is a 5, I have a minor concern.
    Initially, the clock stopped twice in the first two day's following installation. Now, on day two, it is still running so I'm giving the supplier the benefit of the doubt. Ordering & delivery was excellent, a very good experience.
    average rating 100%
    Pendulum Quartz movement 04/10/2018
    By J Clark
    It couldn't have been easier. The website gave very concise and precise instructions to ensure the right parts were being ordered. Shipment was quick and with the tracking number, I knew when it would arrive...and the clock is running perfectly.
    average rating 100%
    Much better quality than expected 10/28/2018
    By Mathieu Raymond
    It's amazing what something assembled outside of China can feel like. The movement fit in great into my customer's old clock, and upgraded it with a second's hand to boot!
    average rating 100%
    Happy customer 08/05/2020
    By Paul Sweet
    I ordered this to replace the movement on a 1980s Garfield clock. The tail fits on the pendulum bob, but I haven't figured how to make the extension to the eyes work yet.
    average rating 100%
    Easy Fix 07/19/2019
    By Beverly Buba
    I received the items sooner than expected. The instructions (picture) online are clear. It was easy to put together and works as it should.
    average rating 100%
    Clock Movement 06/05/2019
    By Jim Fazzi
    all seems to be working just fine , time will tell if movement lasts , Package arrived in great condition and all went together very well
    average rating 80%
    Clock1 06/03/2019
    By Jim Hodson
    Easy to install using existing hands (no second hand)
    Slight whirring noise but only heard when TV and stereo are off.
    average rating 100%
    Pendulum Clock Motor 02/19/2018
    By Alec Peirce
    Perfect fit and looks great.
    A second hand on an old pendulum clock is odd but I love it.
    And great service too.
    average rating 100%
    Pendulum Quartz movement 05/01/2018
    By George Britt
    Very please with what I ask for. Will shop you again when I need to repair my clocks.
    Thanks again.
    average rating 100%
    As advertised 01/28/2019
    By Lisa Lewis
    Exactly what I ordered, website made it easy to pick out what I needed, good quality, prompt delivery.
    average rating 100%
    Very Pleased 01/28/2019
    By Jeff A Murphy
    Pleased with price, shipping and the clock parts. Very good product and service for the money!
    average rating 100%
    Perfect 03/29/2018
    By Henry Dykstra
    Delivery was very fast! The clock movement was just as advertised. Fit and worked perfectly.
    average rating 100%
    clock hands 07/31/2019
    By Rollo Leimer
    The hands fit perfectly, were easy to install, and are a very attractive part of the clock.
    average rating 100%
    Very happy customer 03/27/2020
    By Karen Dagg
    Not only a great product but extremely good communications with this company.
    average rating 100%
    Quality Product 07/03/2018
    By Charles Rose
    Assembly was easy and uneventful - Very happy with this movement.
    average rating 100%
    clock hands 01/29/2018
    By Almeda Sun
    They'll meet my needs once I begin my projects.
    average rating 100%
    Worked great 01/18/2019
    By Ken Sykes
    Solved my problem and great service.
    average rating 100%
    Clock movement 02/11/2017
    By James Edgar
    Just what I was hoping to receive.
    average rating 100%
    Clock movement 07/31/2017
    By Gary Sargent
    Great - very quiet & accurate.
    average rating 100%
    Good service 02/12/2018
    By Germar Groot Hulze
    Good service, quick delivery
    average rating 100%
    Replacement movement 12/05/2016
    By David Mowbray
    Works well , easy install
    average rating 100%
    Happy customer 09/03/2019
    By Gary Schmidt
    Perfect

    Tips

    Install a FRESH Duracell or Energizer Battery (But not a rechargeable type).  In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.

    Choose hands - the options here will fit your clock motor. We recommend our new, balanced hands.
