Pendulum Quartz Clock Movement (up to 3/8" thick dial face)

Average rating:
average rating 93%
7 reviews
Or Click Here to Explore all reviews
Quantity   1 - 4     5 - 9     10 - 24     25+
Price $35.00 $29.50 $28.00 $27.25
Per Each Movement - Hands and Pendulum by Selection Only
Our Product Code: Q-42
Quantity:

Checkout/Estimate Shipping
Share Share on Facebook Share on Pinterest

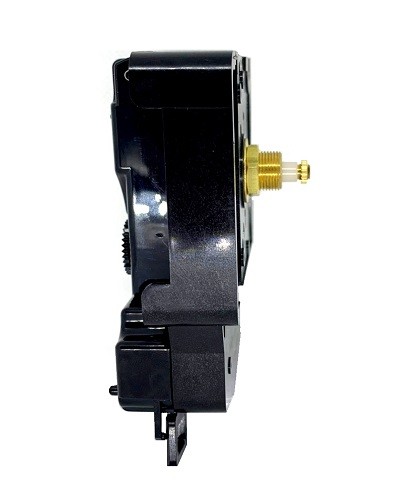

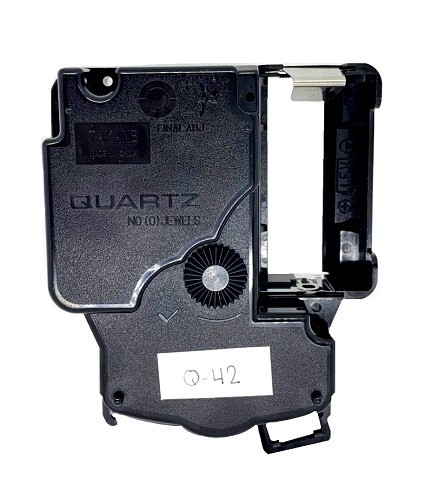

Pendulum Quartz Clock Movements (Up to 3/8" Thick Dial Face)

High-quality Pendulum Clock Motors with a 1-year warranty.

These Clock Motors run a step second hand and is powered by a single 'C' cell battery. The benefit of the C-cell battery is far longer battery life than the mini pendulum mechanisms operating on a AA battery.

Pendulum Clock Mechanisms Features:

  • Pendulum Movements Case Size 3 inches wide x 3-1/2 inches high x 1 inch deep.
  • 1-year Warranty
  • Step Second Hand (optional)
  • Powered by C Battery (not included)
  • Mounting hardware (brass washer, hex nut, and open-end nut) included. Hangers sold separately.

Pendulum Clock Mechanisms Shopping Tips:

1) Choose your movement based on the thickness of the clock face/dial you are using or making. Learn how to choose the right size clock hands and clock motors.

2) Mix and Match Sizes of Pendulum Clock Movements to get a better price.

3) If you forget to add hands or the pendulum rod/bob and you'd still like the hands or rod and bob a separate shipping fee will apply.  We always recommend new hands, as older hands may not fit the American I Shaft design.

Shop here for your Pendulums and Hands to Go With This Pendulum Quartz Clock Motor

Specifications
Stock #

For Clock Dials /
Face Material Up To:

Threaded Shaft Length

Overall Shaft Length

Q-42

3/8" thick

7/16"

3/4"

Runs Clock hands up to 4-1/2" long. Want to make a larger clock? Consider High Torque Pendulum Clock Movements which will run clock hands up to 18" Long.

  • The maximum capacity for pendulums on this movement is 100 grams (3-1/2 ounces).
  • Pendulums swing without battery power - using momentum and magnet. Keep your clock level and perpendicular to the ground for continuous pendulum motion. For a battered powered pendulum consider our Heavy Duty Pendulum Drive QB-DRV

  • Hardware Included

  • Brass Washer
  • Hex Nut
  • Open End Nut



  • Optional Hardware

    Add an Black Endcap for $0.50
    or Add an Endcap for $0.50

    Average rating:
    average rating 93%
    7 reviews

    Click Here to Write a Review || Or Click Here to Explore all reviews

    Featured positive reviews:

    average rating 100%
    Clock parts 12/26/2018
    By Michael D Robben
    I used this quartz movement for a replacment in an older clock. The battery size (C not AA) was the determining factor. These movements run longer and better. Was able to use my old pendulum, fit perfectly on the pendulum motor hanger. No problems
    average rating 80%
    Clock movement 01/13/2016
    By John
    The clock movement fit my existing Seth Thomas steeple clock.It is working very well and keeping good time. I was able to reuse my old pendulum.
    I don't think the movement has the quality of my old one which lasted 38 years. Time changes!
    average rating 100%
    Happy customer!! 07/09/2020
    By Loretta Cole
    Got my clock mechanism very quickly. Easily installed it in my clock!! Very happy. I've had my clock for about 25 years and couldn't find anything that I wanted to replace it with. Being able to fix it was truly satisfying. Thank you!!
    average rating 100%
    Works perfectly 10/03/2019
    By Charles Cullum
    It works great even though this not clock person took so long to do it. Went together quick and easy. Thanks for a great Product, I was able to turn my 2 hand clock into a three hand clock with no heartburn.
    average rating 80%
    Working fine 01/22/2018
    By Richard Schilling
    I had to restart pendulum several times before it kept running but is fine now. Wish I had ordered black hands as gold hands are hard to see.
    average rating 80%
    Works for Now 03/31/2020
    By Norman Collins
    Replace for my Dad's old Venna Regulator. Removed tired brass movement and replaced it with this battery motor. It now keeps time.
    average rating 100%
    Perfect 12/01/2018
    By Ron
    Easy to follow site, fast shipping. Exactly as described. Very well done.
    average rating 100%
    clock movement 08/23/2018
    By John Prosser
    exactly what I wanted.
    average rating 100%
    Great item 01/13/2018
    By Richard Schilling
    Runs and works fine.

    Tips

    Install a FRESH Duracell or Energizer Battery (But not a rechargeable type).  In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.

    Choose hands - the options here will fit your clock motor. We recommend our new, balanced hands.
