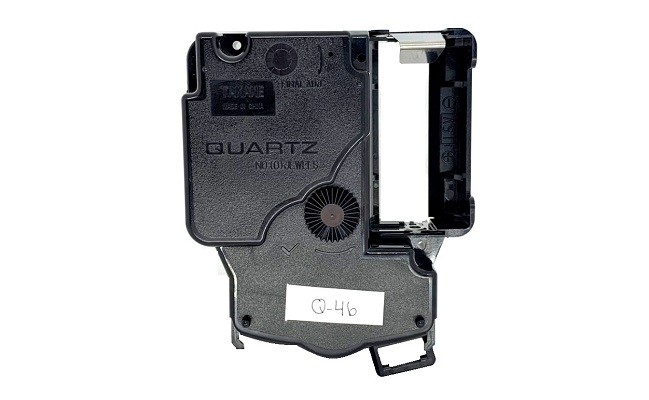

Pendulum Quartz Clock Movement (up to 3/4" thick dial face)

Average rating:
average rating 96%
5 reviews
Explore all reviews
Quantity   1 - 4     5 - 24     25+
Price $34.99 $26.50 $25.50
Per Each Movement - Hands and Pendulum by Selection Only
US NO TAX, Part #: Q-46
Quantity:

Checkout/Estimate Shipping

Pendulum Quartz Clock Movements (Up to 3/4" Thick Dial Face)

High quality Clock Motors with a 1 year warranty.

These Clock Motors run a step second hand and is powered by a single 'C' cell battery. The benefit of the C-cell battery is far longer battery life than the mini pendulum mechanisms operating on a AA battery.

Pendulum Clock Mechanism Features:

    • Pendulum Movements Case Size: 3 inches wide x 3-1/2 inches high x 1-1/4 inch deep.
    • 1 year Warranty
    • Step Second Hand (optional)
    • Powered by a C Battery (Not Included)
    • Mounting hardware (brass washer, hex nut, and open end nut) included. Hanger sold separately.

Pendulum Clock Mechanisms Shopping Tips:

1) Choose your movement based on the thickness of the clock face/dial you are using or making. Learn how to choose the right size clock hands and clock motors.

2) Mix and Match Sizes of Pendulum Clock Movements to get a better price.

3) If you forget to add hands or the pendulum rod/bob and you'd still like the hands or rod and bob a separate shipping fee will apply.  We always recommend new hands, as older hands may not fit the American I Shaft design.

Shop here for your Pendulums and Hands to Go With This Pendulum Quartz Clock Motor

Specifications

**When repairing a clock we always recommend new hands as your old ones may not fit.


  • Dimensions:3 inches wide x 3-1/2 inches high x 1-1/4 inches deep/li>

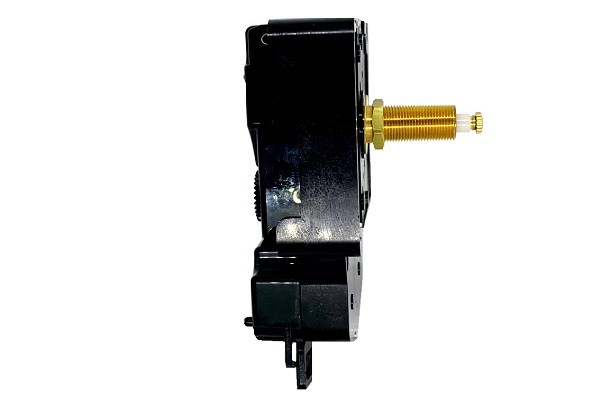

  • Overall Shaft Length:1-1/4"
  • Threaded Shaft Diameter:7/16"
  • Threaded Shaft Length: 7/8"
  • Runs on 1 C battery
  • Runs hands up to 4-7/8" inches long
  • Works with Material up to 3/4" thick

  • The maximum capacity for pendulums on this movement is 100 grams (3-1/2 ounces).
  • Pendulums swing without battery power - using momentum and magnet. Keep your clock level and perpendicular to the ground for continuous pendulum motion. For a battered powered pendulum consider our Heavy Duty Pendulum Drive QB-DRV

  • Hardware Included

  • Brass Washer
  • Hex Nut
  • Open End Nut
  • Hanger Sold Separately



  • Optional Hardware

    Add an Black Endcap for $0.50
    or Add an Endcap for $0.50

    Average rating:
    average rating 96%
    5 reviews

    Write a Review || Explore all reviews

    Featured positive reviews:

    average rating 100%
    Clock movement 04/15/2014
    By James Stahl
    Very pleased,clock came undamaged,well packed and is exactly as described.
    average rating 80%
    clock movement 02/29/2016
    By stanley lombardi
    the swing of the bob is very short from side to side.i used a brand newc cell batt. is there any way I can extend the swing. other that , I am very satisfied with your products. the delivery time was exceptional. at my age(79)I am slowing down a bit . a number of years ago I purchased a plan and parts for a grandchild clock I belive,from turncraft.they don't list this product anymore. that is why I purchased your parts for. if you can help I would appreciate it very muchas I plan to make more.thank you.
    average rating 100%
    Great customer service!! 11/10/2023
    By MaryEllen Mehler
    Bear works was right on the mark when I needed a new quartz gear box for my 30 old clock!! Customer service was excellent! They asked all the right questions to get just the right one and now my clock is back to working beautifully!! Would recommend for any clock supplies needed!!
    average rating 100%
    excelant 12/27/2018
    By Archie Groth
    Bear woods was exceptional, very helpful , polite and courteous . It was a pleasure working with Bear Woods.
    Thanks Amy

    average rating 100%
    perfect 06/19/2015
    By Marc-André Breton
    exactly what i needed for a deceant price, works fine and seems to be good quality

    Tips

    Install a FRESH Duracell or Energizer Battery (But not a rechargeable type).  In our experience, these are the only batteries that are reliable for clock mechanisms. Sometimes you will even try a separate pack as not all new packs have perfect batteries.

    Choose hands - the options here will fit your clock motor. We recommend our new, balanced hands.
