USA Made Standard Quartz Clock Mechanisms (up to 1/8" dial face) with Free Hands

Average rating:
average rating 96%
93 reviews
Explore all reviews
Quantity   1 - 9     10 - 49     50 - 99     100+
Price $12.50 $8.25 $5.25 $4.25
Per USA Made Clock Motor. Choose FREE or Premium Clock Hands
US NO TAX, Part #: Q-11
Checkout/Estimate Shipping

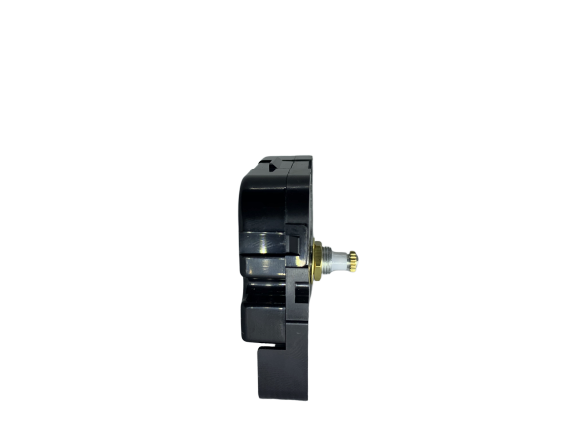

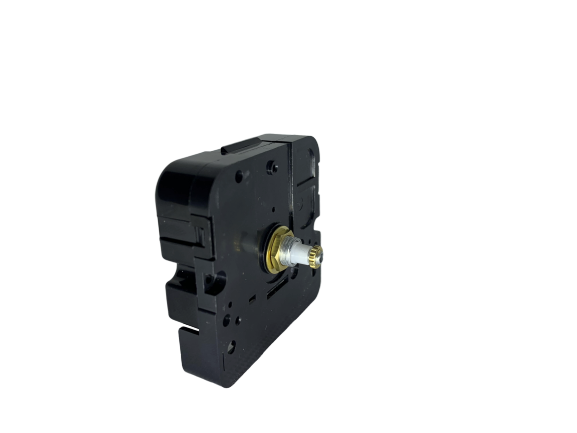

Mini Quartz Clock Movements for 1/8 inch thick dial face

These movements made in the US by Takane and work with hands under 5 inches long.

  • Accurate Within 2 Minutes A Year
  • 1 Year Warranty
  • OK for outdoor use if sheltered from rain.

Click just above on "Choose your hands" to choose your hands for this type of movement. There are about 25 free hand options available and many more for purchase.

Please note free hands are only available per each movement purchased and if not selected at time of purchase, there will be an extra shipping charge. Also note that hangers and the rubber washer are sold separately - find them at the same spot as where you choose your hands.

Need hands longer than 5 inches? Click here for high torque options


**When repairing a clock we always recommend new hands as your old ones may not fit.

  • Dimensions: 2-1/8 inch x 2-1/8 inch x 5/8 inch thick

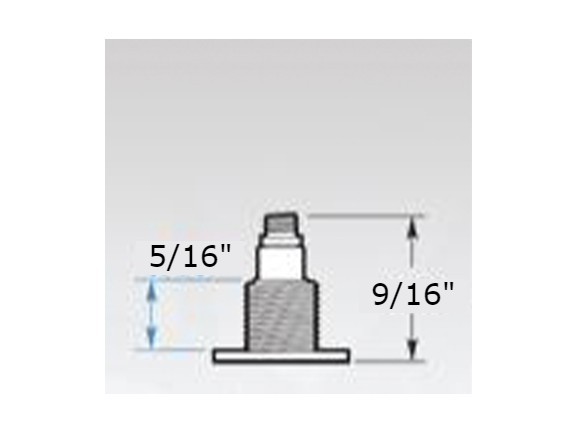

  • Overall Shaft Length: 9/16"
  • American I Shaft Diameter: 5/16 inch
  • Runs on 1 (AA) Size Battery
  • Runs up to 4-7/8" Clock Hands
  • Fits 3 inch Diameter Hole or Flush Mount
  • Works with material up to 1/8" thick

  • Hardware Included

  • Brass Washer
  • Hex Nut
  • Open End Nut
  • Hangers sold separately

  • Optional Hardware

    Add an Black Endcap for $0.50
    or Add an Endcap for $0.50
